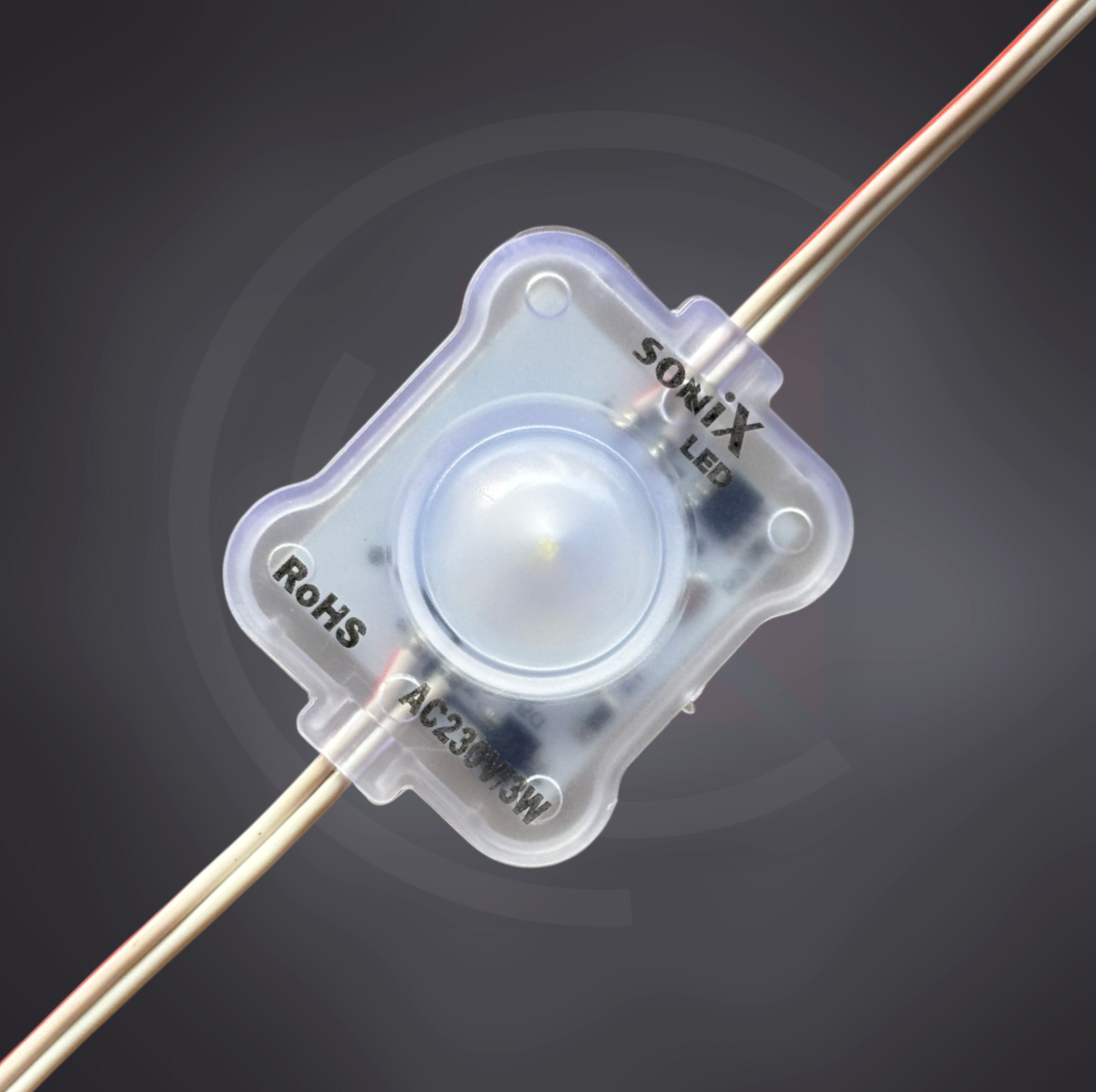

SoniX One LED AC 220V

Sonix 1LED Backlit Series
Model No. 1LED - AC
Operating Voltage  AC 220V
Power Consumption 3W
Color/CCT CW/WW
Viewing Angle 160°
Luminous 290 lm
Operating Temp.

(-20°C - 60°C)

(-4°F - 140°F)

Warranty 2 Years
IP Rating IP67
Dimension  52x42x13 mm
Wire Length     225mm                            UL 18 AWG Pair

Category: LED Modules
Sub Category: SoniX LED
View Brochure

Description

  • Constant Voltage Driven.
  • Up to 80% energy saving. Long service life up to 40000 hrs.
  • Epistar (99.9%) Gold Thread, Pure Copper,Bracket coated with silver LED.
  • High Pressure Ultrasonic with 100% Poly Carbonate Casing.
  • Special Lens Design (160 ) Degree beaming angle with equal light.
  • Easy Installation with Double-Sided Quality tape for assured installation.
  • High luminous efficiency up to 110 lm/W.
  • IP 65 Waterproof.

Sonix 1LED Backlit Series
Model No. 1LED - AC
Operating Voltage  AC 220V
Power Consumption 3W
Color/CCT CW/WW
Viewing Angle 160°
Luminous 290 lm
Operating Temp.

(-20°C - 60°C)

(-4°F - 140°F)

Warranty 2 Years
IP Rating IP67
Dimension  52x42x13 mm
Wire Length     225mm                            UL 18 AWG Pair
