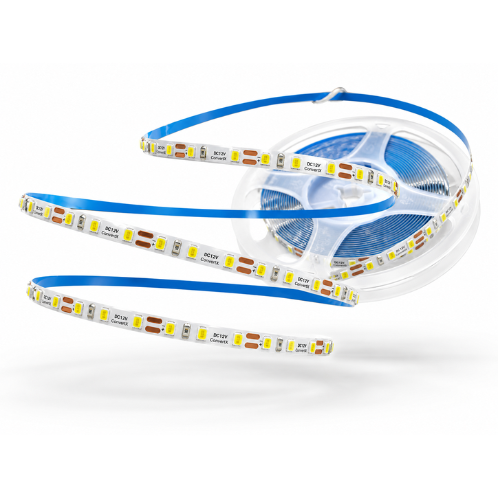

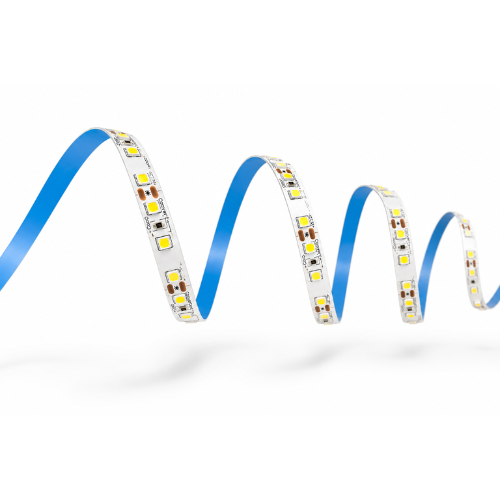

ConvertX Strip

ConvertX Strip

Specification	120 LED 4 MM	120 LED 4 MM	120 LED 4 MM	120 LED 4 MM
Colour	CW/PW/NW/WW	CW/PW/NW/WW	CW/PW/NW/WW	CW/PW/NW/WW
Watt/Voltage	14.4W/12V DC	14.4W/12V DC	14.4W/12V DC	20W/12V DC
LED/Per Mtr	120LED	120LED	120LED	240LED
Luminous	1890lm/Mtr	1890lm/Mtr	1890lm/Mtr	2679lm/Mtr
Width	4mm	5mm	8mm	10mm
Warranty	1 Year	1 Year	1 Year	1 Year
IP Rating	IP20	IP20	IP20	IP20
Operating Temp	± 20° + 60°	± 20° + 60°	± 20° + 60°	± 20° + 60°

Category: LED Strips

Sub Category: SoniX 240 LED

View Brochure

Description

120LED-4mm, 120LED-5mm Zigzag, 120LED-8mm, 240LED-10mm

2835 SMD LED with long lifespan, low attenuation and hight efficiency

Pure Copper FPC, Jointless PCB, "U" Shape Solder pad design

Easy to solder, yielding firm joints with no false soldering ensuring an excellent effect.

Application :- Cove lighting, profile lighting, props lighting, Fixture, Solid Narrow Signages

Letters, Retail outets etc.

Specification	120 LED 4 MM	120 LED 4 MM	120 LED 4 MM	120 LED 4 MM
Colour	CW/PW/NW/WW	CW/PW/NW/WW	CW/PW/NW/WW	CW/PW/NW/WW
Watt/Voltage	14.4W/12V DC	14.4W/12V DC	14.4W/12V DC	20W/12V DC
LED/Per Mtr	120LED	120LED	120LED	240LED
Luminous	1890lm/Mtr	1890lm/Mtr	1890lm/Mtr	2679lm/Mtr
Width	4mm	5mm	8mm	10mm
Warranty	1 Year	1 Year	1 Year	1 Year
IP Rating	IP20	IP20	IP20	IP20
Operating Temp	± 20° + 60°	± 20° + 60°	± 20° + 60°	± 20° + 60°
