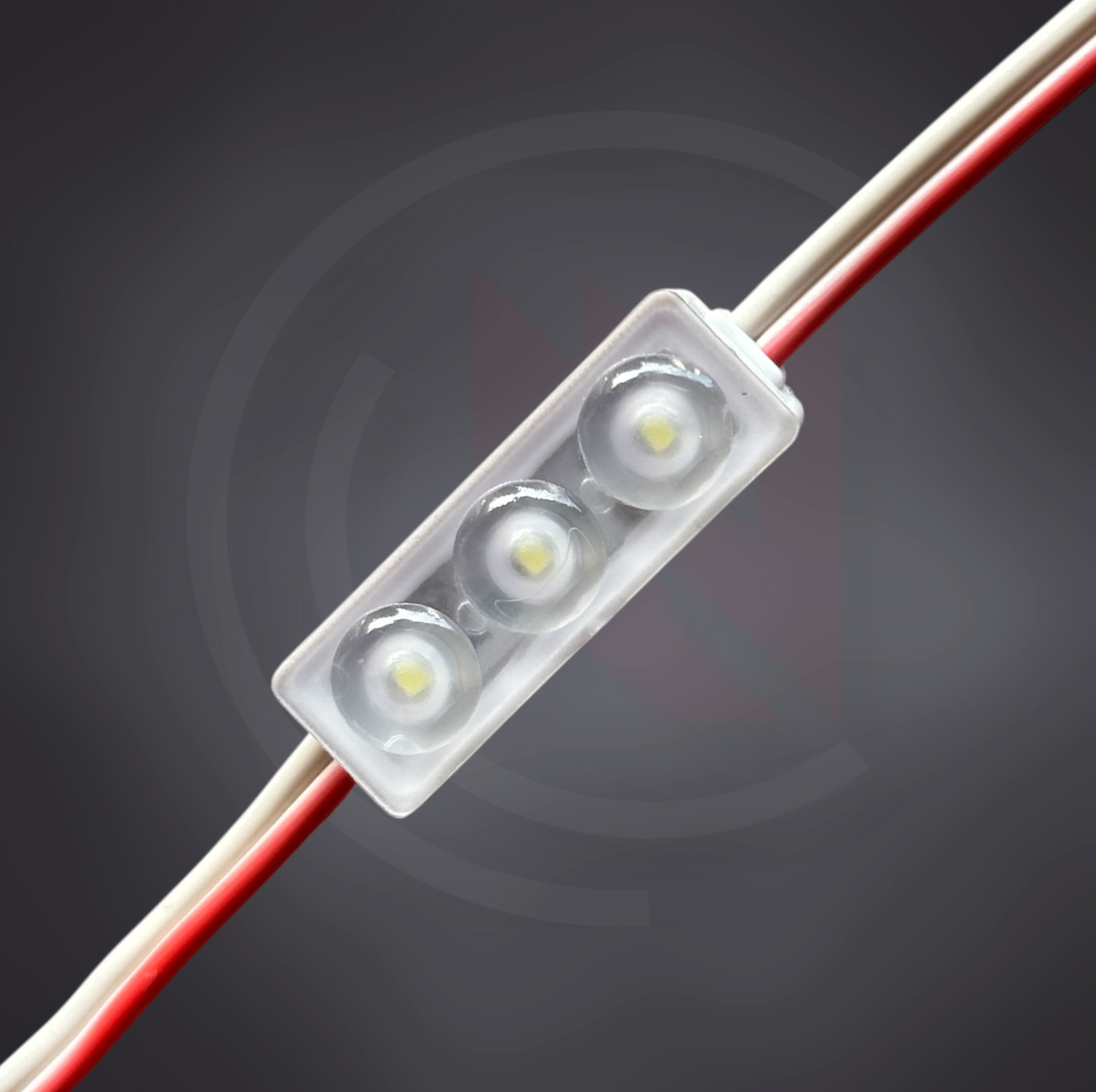

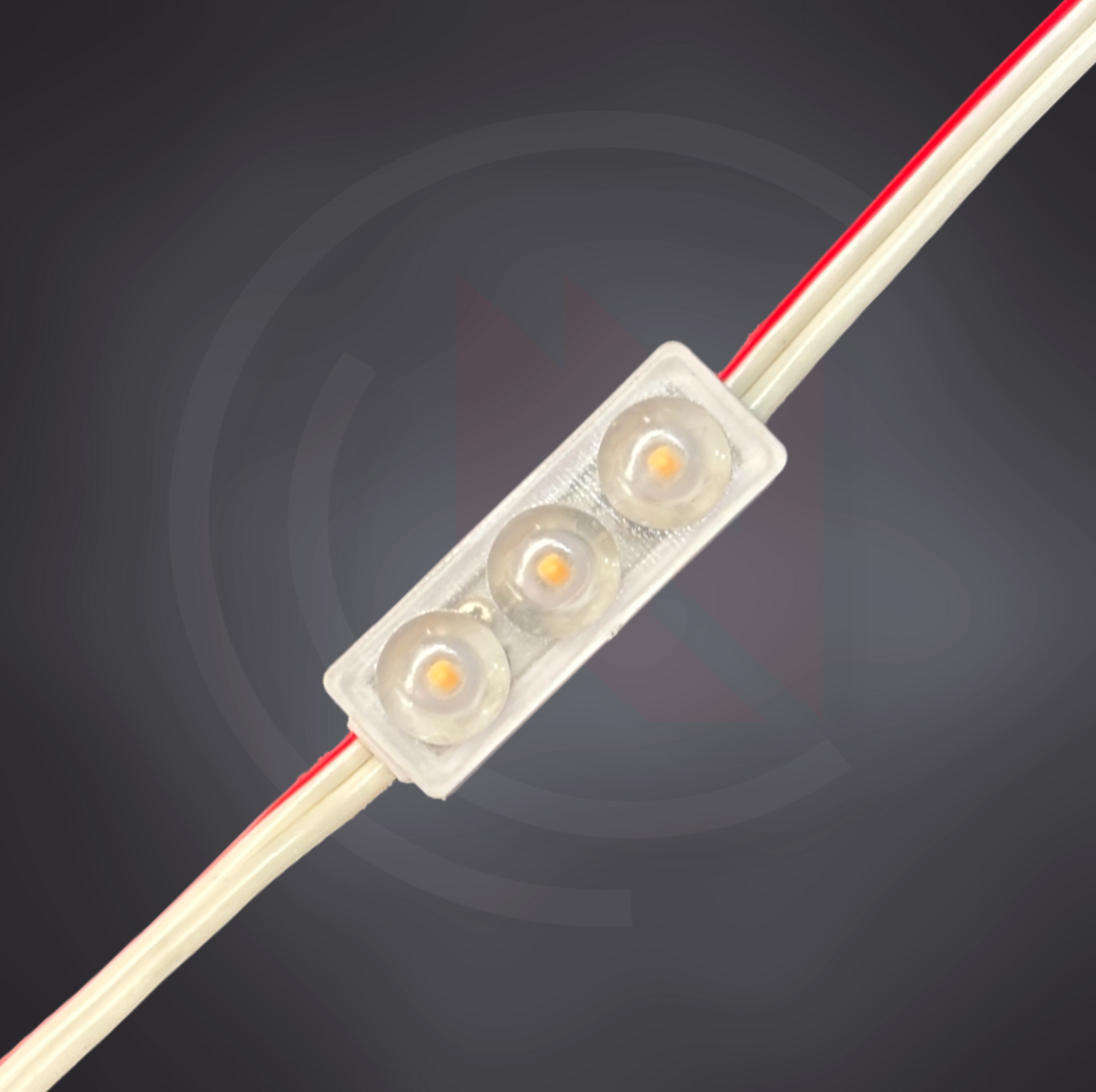

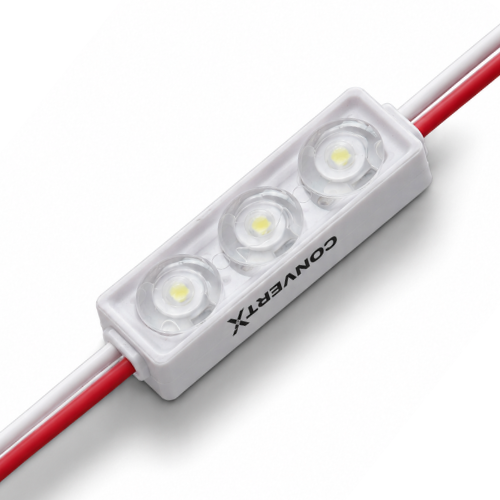

SoniX Mini 3 LED Premium

  • Home
  • SoniX Mini 3 LED Premium

SoniX Mini 3 LED Premium

Sonix 3 LED Mini Series
Model No. 3 LED Mini Premium
Operating Voltage  DC-12V
Power Consumption 0.72W
Color/CCT BW/CW/PW/NW/  WW/R/G/B/Y
Viewing Angle 160°
Luminous 70 lm
Operating Temp.

(-20°C - 60°C)

 (-4°F - 140°F)
Warranty 3 Years
IP Rating IP67
Dimension  30x10x8 mm
Wire Length  45mm                            UL 18 AWG Pair

Category: LED Modules
Sub Category: SoniX LED
View Brochure

Description

  • Operates on constant voltage.

  • Special lens design ensures a 160° beam angle with uniform light spread and no spots.

  • Durable construction using polycarbonate cover and ABS body.

  • Well-sealed design, offering protection against dust, moisture, and water ingress.

  • Waterproof LED with an IP67 rating.

  • Convenient installation using double-sided tape.

  • Integrated injection molding for superior protection.

  • Energy-efficient and eco-friendly.

Sonix 3 LED Mini Series
Model No. 3 LED Mini Premium
Operating Voltage  DC-12V
Power Consumption 0.72W
Color/CCT BW/CW/PW/NW/  WW/R/G/B/Y
Viewing Angle 160°
Luminous 70 lm
Operating Temp.

(-20°C - 60°C)

 (-4°F - 140°F)
Warranty 3 Years
IP Rating IP67
Dimension  30x10x8 mm
Wire Length  45mm                            UL 18 AWG Pair
